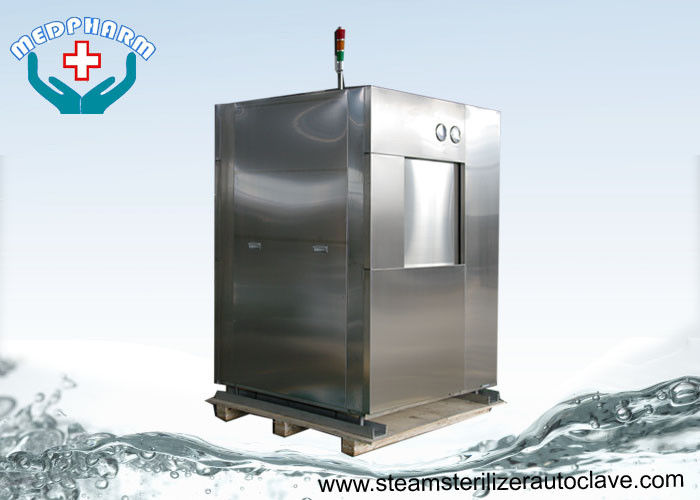

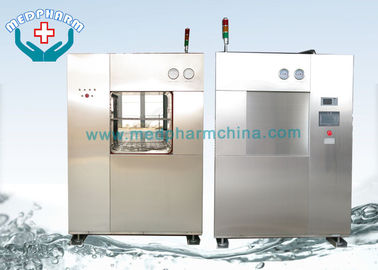

Temperature Sensor Control Hospital Steam Sterilizer With Six Preprogrammed Cycles

PT-100 (Platinum resistance) Temperature Sensor Control Hospital Sterilizer With Six Preprogrammed Cycles

Specification

This Hospital sterilizer is configured for pre-vacuum sterilization of heat- and moisture-stable materials used in hospital, clinic, operation room and healthcare facilities. It can  be equipped with pre-vacuum, Steam Flush Pressure Pulse (SFPP), gravity, liquid, and daily air removal test cycles which use, for example, a Bowie-Dick test pack to determine the effectiveness of removing air from a sterilizer chamber.

Designed and manufactured according to ISO 9001, ISO 13485 system and latest moist steam sterilizer related standards, which has the obvious advantage of low  failure rate and easily operation to ensure your satisfied using smoothly.

Built-in steam generator of full SUS304 stainless steel with strong construction and long uptime is controlled by the PLC intelligently avoiding your trouble of external steam  supply.

Controlled by the sterilizer’s main PLC system, the steam generator, operation at the best status during the sterilization, is not only lowing the failure rate, but saving  your money every days as well.

Control System

This Hospital Sterilizer features Mitsubishi PLC with enhanced functionality and user-friendly interface screen.

• Touch-screen with 800 x 480 display resolution

• Ink-on-paper impact printer,

• Help screens for programming and troubleshooting alarm conditions

• Automatic check of control program and cycle data maintains process integrity

• Individual digital data recorder for sterilization data storage.

• High precise temperature sensor and pressure transmitter to ensure the PLC control  accurately and total sterilization effectiveness.

• Double sensor at the same point for PLC control and individual recorder monitoring to  ensure the sterilization performance of reliable and repeatable.

Steam Generator

This Hospital Sterilizer equipped with an electric steam generator includes an automatic water-in, electric heating and drain controlled by PLC.

Steam generator vessel of SUS304, electric heating element of SUS304 to ensure the clean steam supply.

• Electrical - Controls
    220 Volt, 50/60 Hz, 1-phase, 1KVA

 Optional:

   220 Volt, 60 Hz, 1-phase, 1KVA or

  120 Volt, 50/60 Hz, 1-phase, 1KVA

• Electrical - Integral Steam Generator

  AC380Volt, 50 Hz, 3-phase, 18KW

Optional:

  AC208 Volt, 50/60 Hz, 3-phase, 18KW

  AC240 Volt, 50/60 Hz, 3-phase, 18KW

  AC380 Volt, 60 Hz, 3-phase, 18KW

  AC480 Volt, 50/60 Hz, 3-phase, 18KW

Programs

Test programs: Bowie & Dick test, vacuum test.

Working programs:  Multiple customizable programs for textiles, instruments, rubbers, culture medium and liquids in unsealed bottles.

Main adjustable parameters

  Sterilization temperature rage: at 105°C to 134°C

  Sterilization time rage: 0---99 minutes

  Vacuum times: 0---9 times

  Drying time: 0---99 minutes

Multiple adjustable parameters to ensure user’s customized programs are available, accurate  and perfect sterilization effect.

Loading/Unloading System

Standards equipped:1 piece loading cart of SUS304 stainless steel, 2 pieces trolley of SUS304  stainless steel.

loading plate, racks or shelves are available for option.

Parameters

Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
