Product Details:
Payment & Shipping Terms:
|
| Name: | CSSD Sterilizer | Chamber Materia: | SS 304 |
|---|---|---|---|
| Jacket Material: | Carbon Steel | Capacity Volume: | 800 Liters |
| Air Filter Precise: | 0.22um | Touch Screen: | Mitsubishi Or Siemens |
| Printer: | Thermal Printer Built In Sterilizer | Door Mechanism: | Pneumatic Seal |
| High Light: | cssd hospital equipment,sterilising hospital equipment |
||

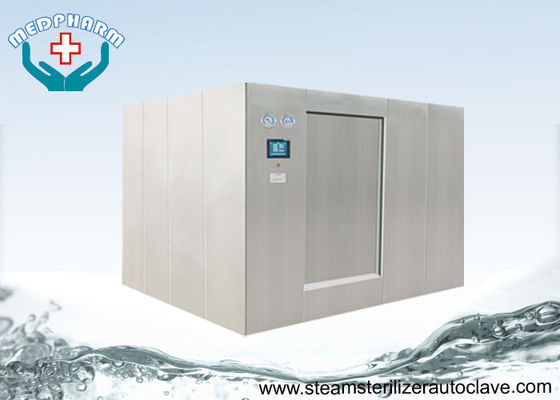

Hospital Sterilization Equipment 800 Liters CSSD Sterilizer With Water Ring Vacuum Pump
Specification
1. Model: MD-0.8Y
2. Chamber dimension: 680*1180*1000mm
3. Outer dimension: 2200*2000*1410mm
4. Gross weight: 1480kgs
5. Material: Chamber SS304,jacket carbon steel
6. Door type: Horizontal sliding door, pass through or single door
|
Model |
Chamber Size |
Overall Size |
Net Weight |
Steam |
Water |
Power |
|
W*H*D mm |
W*H*D mm |
Kg |
Kg/cycle |
Kg/cycle |
KVA |
|
|
MD-0.8Y |
680*1180*1000 |
2200*2000*1410 |
1480 |
35 |
80 |
3 |
|
MD-1.0Y |
680*1180*1250 |
2200*2000*1660 |
1630 |
40 |
100 |
4 |
|
MD-1.2Y |
680*1180*1500 |
2200*2000*1910 |
2030 |
45 |
120 |
4 |
|
MD-1.5Y |
680*1180*1870 |
2200*2000*2280 |
2230 |
50 |
150 |
4.5 |
|
MD-2.0Y |
1000*1200*1700 |
2800*2000*2110 |
2490 |
60 |
200 |
4.5 |
|
MD-3.0Y |
1000*1500*2000 |
2800*2200*2410 |
3050 |
90 |
300 |
5 |
|
MD-4.0Y |
1000*1500*2670 |
2800*2200*3080 |
3700 |
120 |
400 |
6 |
|
MD-5.0Y |
1000*1500*3340 |
2800*2200*3750 |
4600 |
150 |
500 |
8 |
|
MD-6.0Y |
1000*1500*4000 |
2800*2200*4410 |
5400 |
180 |
600 |
8 |
|
MD-8.0Y |
1000*1500*5340 |
2800*2200*5750 |
7000 |
240 |
800 |
12 |
Description
• Chamber and door made of stainless steel and conform to GB-150, PED or ASME standards
• Conform to medical standard MDD 93/42/EC Pneumatically controlled door opening with
safety system
• Compressed-air driven one piece chamber gasket made of silicon
• High capacity, low noise water ring vacuum pump for vacuum function
• High quality valves, sensors and transmitters for a problem free and safe operation
• Pneumatic valves in the steam lines
• PLC control system with 5.7” colorful touch screen
• Wide screen allows monitoring all related information regarding sterilization cycle
• 6 preset programs.
• Two test programs: Bowie & Dick and vacuum leakage
• Independent control system besides the main control system to record the data related to
every cycle
• Comprehensive self-diagnostic system for possible system malfunctions
• Service menu to detect the problem in case of a failure
• Micro-printer offered as standard
• Optional RS 232 port and software
Applications
» Wrapped Goods
» Un-Wrapped Goods
» Bowie-Dick Test Cycle
» Low-Temperature Wrapped Goods
» Small volumes of Liquids
» Leak Test
Competitive Advantage
1. Validation
We operate validation of your sterilization equipment or sterilization environment based on
GMP・GLP
2. Main Operation
Validation, Maintenance Service, Make report of validation and maintenance documentation
3. Maintenance
We can deal with maintenance as soon as possible
.
4. Calibration
If you do the calibration you need a lot of times and efforts. So we contract to calibration of
your sterilization equipment or environment
